6,000 revolutions per cycle service life -
Easy and Quick Installation -
App Remote Monitoring -
The safe and reliable design is equipped with an internal circuit breaker of 125A -
Built-in Bluetooth and Wi-Fi -
Supports multiple communication protocols -
Color touch display screen

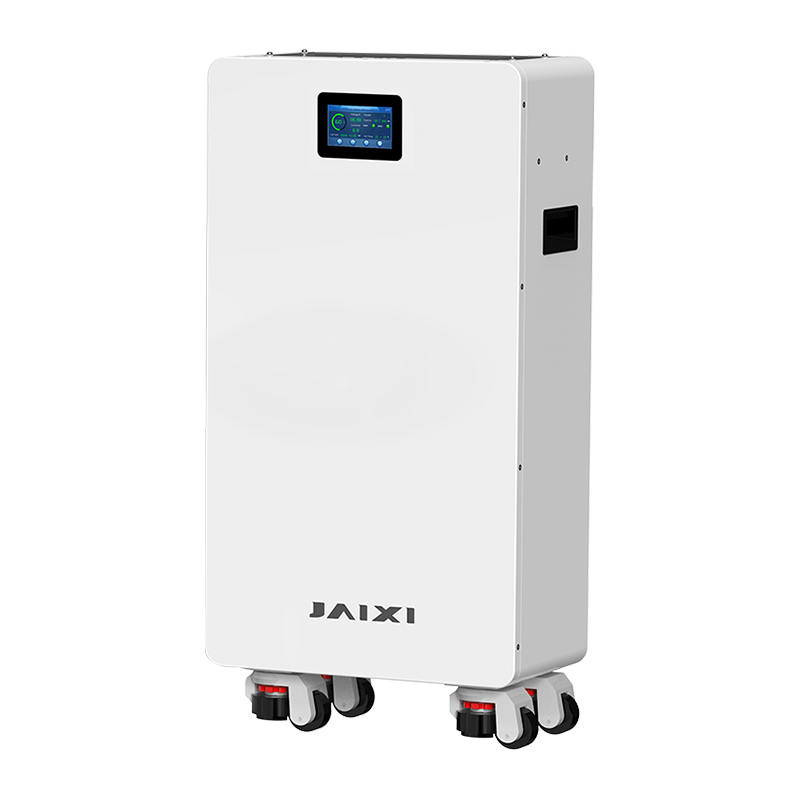

| Technical Data | Neptune LA-G16.0 |
| Capacity | 16.07kWh |
| Main Parameter | |
| Battery Type | LiFePO4 |
| Capacity(Ah) | 314 |
| Nominal Voltage(V) | 51.2 |
| Operating Voltage(V) | 43.2~57.6 |
| Rated Energy(kWh) | 16.07 |
| Usable Energy(kWh) | 14.47 |
| Maximum Charge/Discharge Current(A) |
150/200 |
| Recommend Death of Discharge | 90% |
| Other Parameter | |
| Dimension(W×H×D,mm) | 430*864*240 |
| Weight Approximate(kg) | 112 |
| Display | Color touch display screen(Optional) |
| Indicator Lights | LED Indicators(Optional) |
| IP Rating of Enclosure | IP20 |
| Operating Temperature(℃) | Charge:0℃~55℃ |
| Discharge:-20℃~55℃ | |
| Storage Temperature(°℃) | -10℃~35℃ |
| Humidity | 5%~95% |
| Altitude | ≤2000m |
| Cycle life | ≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL) |
| Installation Location | Floor-Mounted |
| Communication Port | CAN2.0,RS485,RS232,WIFI |
| Warranty Period | 5 years |
| Certification | UN38.3 |
