| Technical Data |

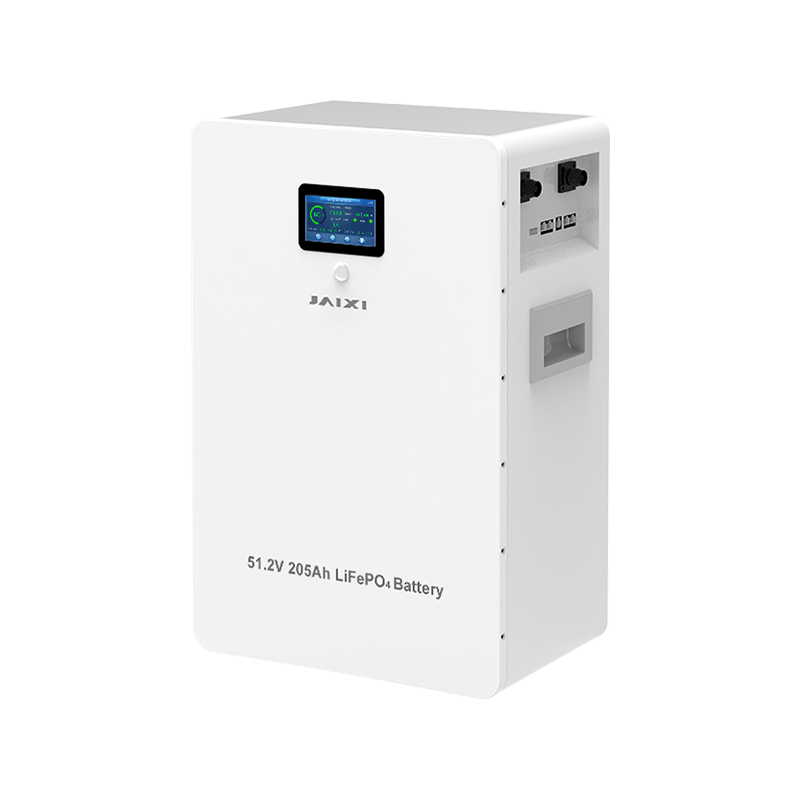

Neptune LA-B10.0-01 |
| Main Parameter |
| Battery Type |
LiFePO₄ |
| Capacity(Ah) |
205 |
| Scalability |
Recommend 15 pcs pack(157.44kWh) |
| Nominal Voltage(V) |
51.2 |
| Operating Voltage(V) |
43.2~57.6 |
| Rated Energy(kWh) |
10.49 |
| Usable Energy(kWh) |
9.44 |
| Charge/Discharge Current(A) |
Recommend 102.5 |
| Max200 |
| Other Parameter |
| Recommend Death of Discharge |
90% |
| Dimension(W×H×D,mm) |
380×650×250 |
| Weight Approximate(kg) |
80 |
| Color touch display screen |
Have |
| IP Rating of Enclosure |
IP20/IP65 |
| Operating Temperature(℃) |
Charge: 0℃~55℃ |
| Discharge:-20℃~55℃ |
| Storage Temperature(℃) |
0℃~35℃ |
| Humidity |
5%~95% |
| Altitude |
≤2000m |
| Cycle Life |
≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL) |
| Installation Location |
Wall-Mounted, Floor-Mounted |
| Communication Port |
CAN2.0, RS485 |
| Warranty Period |
5 years |
| Certification |
UN38.3 |
English
中文简体
LCD Color Screen Operation
Support up to 15 unit in parallel
6,000 revolutions per cycle service life
Supports multiple communication protocols
Working temperature: -20℃~40℃
Supports floor mount and wall mount to save mounting space
The safe and reliable design is equipped with an internal circuit breaker of 125A
