Scalability
Supports up to 16 units in series, with a total capacity of up to 257 kWh. -
Smart Remote Monitoring -
Easy Installation

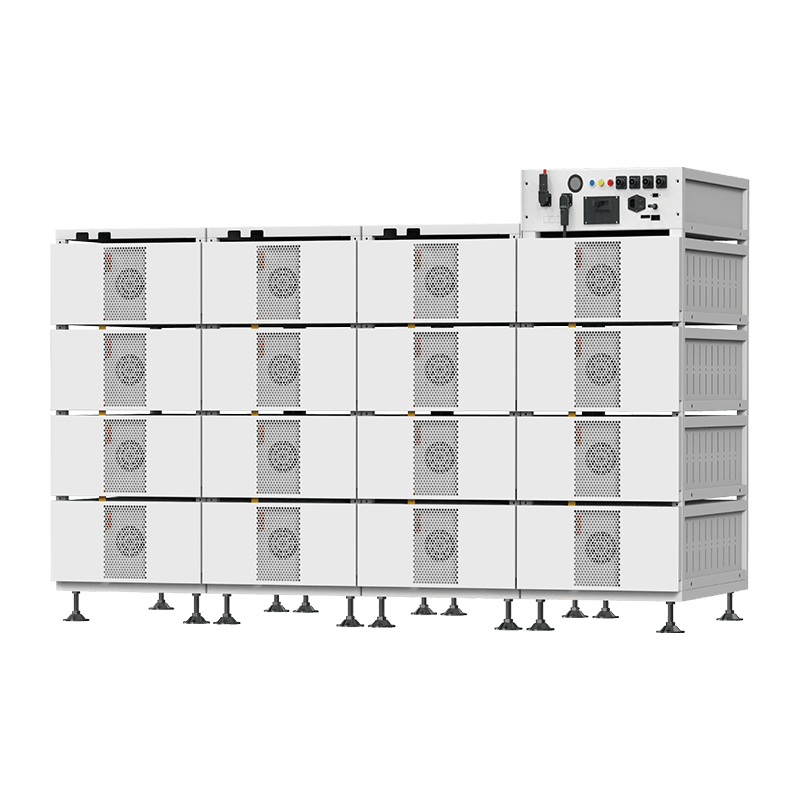

Stacking method is adopted for installation. -
Supports multiple communication protocols -
Safer
LiFePO4 batteries Support aerosol fire extinguishing -
6000 cycles @80% for effectively lower total of ownership cost
| System Parameters | ||||
| Model | Jupiter AD48-J1 | Jupiter AD112-J1 | Jupiter AD176-J1 | Jupiter AD241-J1 |
| Nominal Voltage(V) | 153.6 | 358.4 | 563.2 | 768 |
| Battery Module Qty In | 3 | 7 | 11 | 15 |
| Series(ODtional) Operating Voltage(V) |
134.4~172.8 | 313.6~403.2 | 492.8~633.6 | 672~864 |
| Rated Energy(kWh) | 48.23 | 112.53 | 176.84 | 241.15 |
| Usable Energy(kWh) | 43.4 | 101.27 | 159.15 |
217.03 |
| Scalability | 3~16 pcs pack+1 pcs HV Box(48~257kWh) | |||
| Recommend Deth of Discharge | 90 | |||
| Charge/Discharge Current (A) | Recommend: | 157 | ||
| Max: | 180 | |||
| Operating Temperature(℃) | Charge: Discharge: |
0℃~55℃ -20℃~55℃ |
||
| Other Parameter | ||||
| Storage Temperature(℃) | -10℃~35℃ | |||
| Humidity | 5%~95% | |||
| Altitude | ≤2000m | |||
| Ingress Protection | IP20 | |||
| Cooling Method | Forced air cooling | |||
| Installation Location | Stacking Method | |||
| Dimension(W×D×H,mm) | 470*815*1151 | 945*815*1151 | 1420*815*1151 | 1895*815*1151 |
| Weight Approximate(kg) | 407 | 907 | 1407 | 1907 |
| Cycle life | ≥8000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL) | |||
| Battery Pack Parameters | ||||
| Model | Jupiter NC16-J1 | |||
| Battery Type | LiFePO4 | |||
| Nominal Voltage(V) | 51.2 | |||
| Capacity(Ah) | 314 | |||
| Weight Approximate(kg) | 125 | |||
| Dimension(W×D×H,mm) | 795.9×526×275 | |||
| Warranty Period | 5 years | |||
| Certification | UN38.3 | |||
