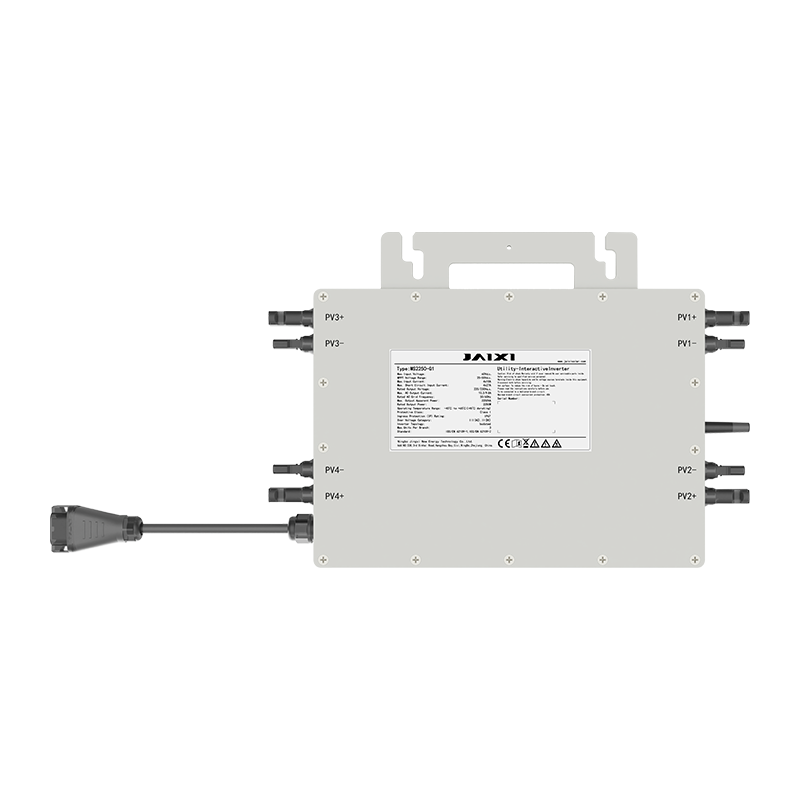

HOME / PRODUCTS / DIY PV-Storage Hybrid System / Uranus MS1200/ 1400/ 1600/ 1800/ 2000/ 2200/ 2250-G1
-
Reliability
• IP67-rated for outdoor use
• *10 years warranty -
4 MPP trackers module level monitoring -
Rapid shutdown function -
Wi-Fi Standard -
The maximum DC input current is 18A -
Low-Noise Operation
| Technical Data | Uranus MS1200-G1 | Uranus MS1400-G1 | Uranus MS1600-G1 | Uranus MS1800-G1 | Uranus MS2000-G1 | Uranus MS2200-G1 | Uranus MS2250-G1 |
| PVString Input Data | |||||||
| Max.PV Input Power(W) | 210-420(4 Pieces) | 210-490(4 Pieces) | 210-560(4 Pieces) | 210-630(4 Pieces) | 210-700(4 Pieces) | 210-770(4 Pieces) | 210-790(4 Pieces) |
| Max.PV Input Voltage(V) | 60 | ||||||
| Start-up Voltage (V) | 20 | ||||||
| MPPT Voltage Range(V) | 25-55 | ||||||
| Rated PV Input Voltage (V) | 42.5 | ||||||
| Max.Operating PV Input Current(A) | 18+18+18+18 | ||||||
| Max.Input Short Circuit Current(A) | 27+27+27+27 | ||||||
| No.of MPP Trackers/No.of Strings MPP Tracker | 4/1 | ||||||
| AC Output Side | |||||||
| Rated AC Output Active Power(W) | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2250 |
| Max AC Output Apparent Power(VA) | 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2250 |
| Rated AC Output Current (A) | 5.5/5.2 | 6.4/6.1 | 7.3/7 | 8.2/7.9 | 9.1/8.7 | 10/9.6 | 10.3/9.8 |
| Max.AC Output Current(A) | 5.5/5.2 | 6.4/6.1 | 7.3/7 | 8.2/7.9 | 9.1/8.7 | 10/9.6 | 10.3/9.8 |
| Rated Output Voltage/Range (V) | 220/2300.85Un-1.1Un | ||||||
| Grid Connection Form | L/N/PE | ||||||
| Rated Output Grid Frequency/Range(Hz) | 50/45-55,60/55-65 | ||||||
| Max.Unit per Branch | 5 | 4 | 4 | 3 | 3 | 3 | 3 |
| Power Factor Adjustment Range | 0.9 leading-0.9 lagging | ||||||
| Total Current Harmonic Distortion THDi | <3% | ||||||
| DC Injection Current | <0.5%ln | ||||||
| Efficiency | |||||||
| Max.Efficiency | 0.965 | ||||||
| Euro Efficiency | 0.96 | ||||||
| MPPT Efficiency | >99% | ||||||
| Equipment Protection | |||||||
| DC Reverse Polarity Protection | Yes | ||||||
| AC Output Overcurrent Protection | Yes | ||||||
| AC Output Overvoltage Protection | Yes | ||||||
| AC Output Short Circuit Protection | Yes | ||||||
| Thermal Protection | Yes | ||||||
| Insulation Impedance Detection | Yes | ||||||
| Anti-island Protection Ptotection | Yes | ||||||
| Surge Protection Level | TYPE Ⅱ(AC) | ||||||
| General Data | |||||||
| Operating Temperature Range(℃) | -40 to+65℃,>45℃ Derating | ||||||
| Permissible Ambient Humidity | 0-100% | ||||||
| Permissible Altitude(m) | 2000m | ||||||
| Noise(dB) | ≤25 | ||||||
| Ingress Protection(IP)Rating | IP67 | ||||||
| Inverter Topology | lsolated | ||||||
| Over Voltage Category | OVC II(DC),OVCII(AC) | ||||||
| Communication | Wi-Fi | ||||||
| Cabinet Size(WxH×D)(mm) | 314.3*269.8*40.3(Excluding Connectors and Brackets) | ||||||
| Weight (kg) | 5 | ||||||
| Warranty | 10 Years | ||||||
| Type of Cooling | Natural Cooling | ||||||
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,G98,G99, VDE-AR-N 4105 | ||||||
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC /EN 62109-1, IEC/EN 62109-2 | ||||||
