| Technical Data |

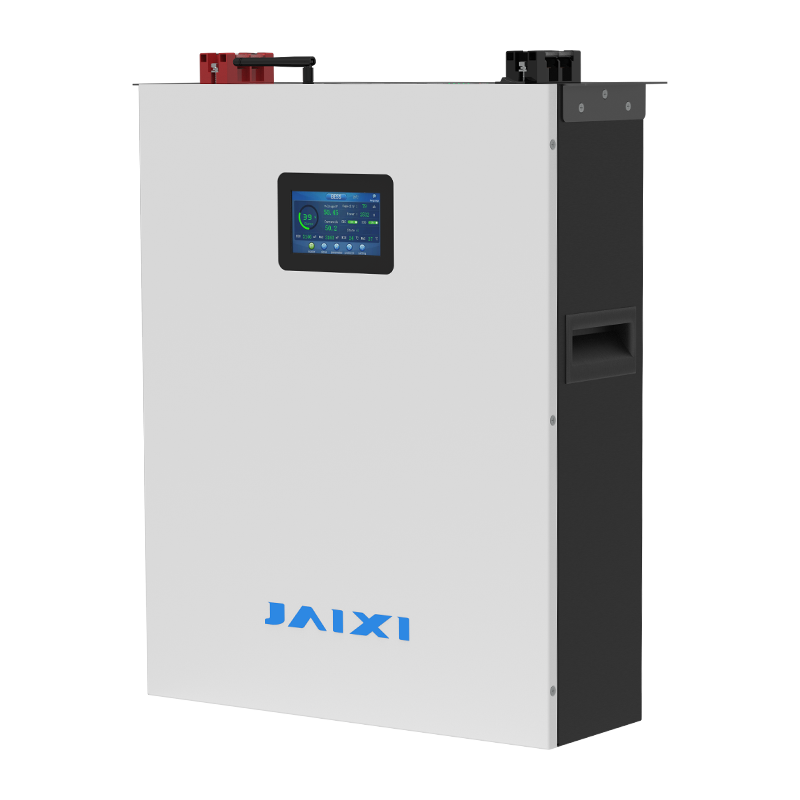

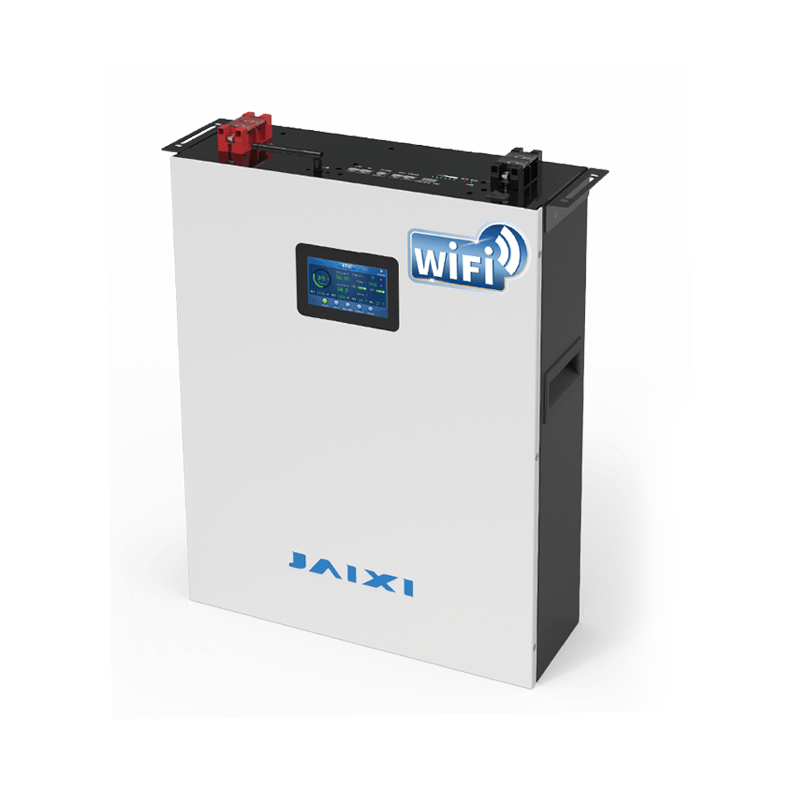

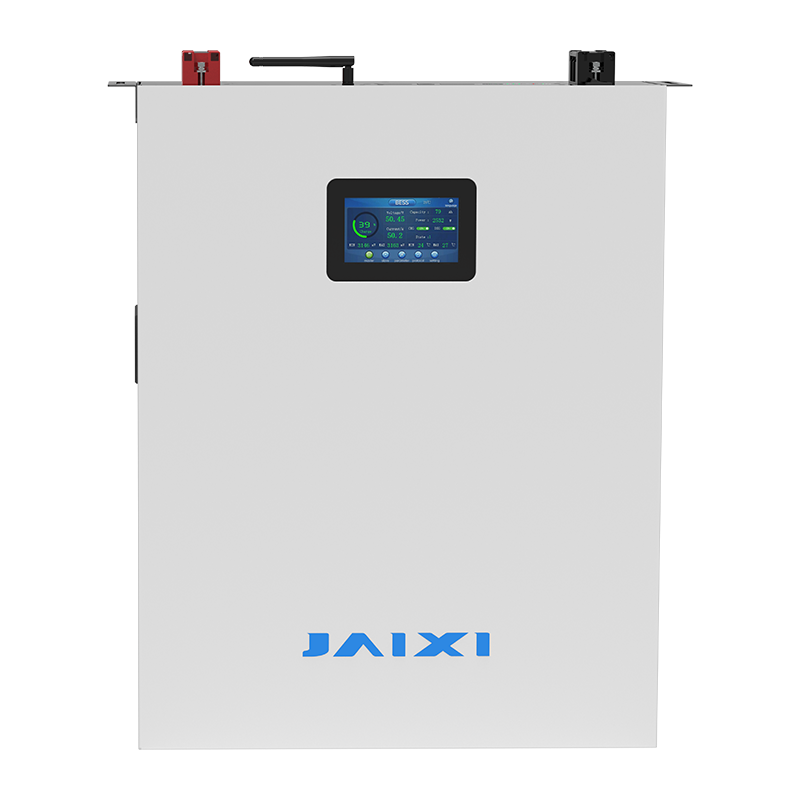

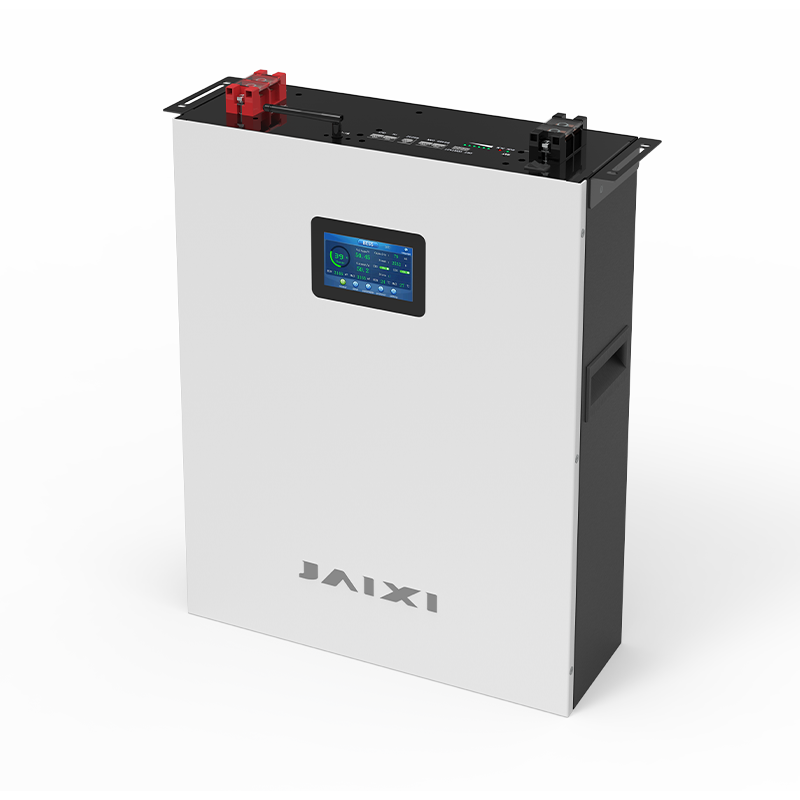

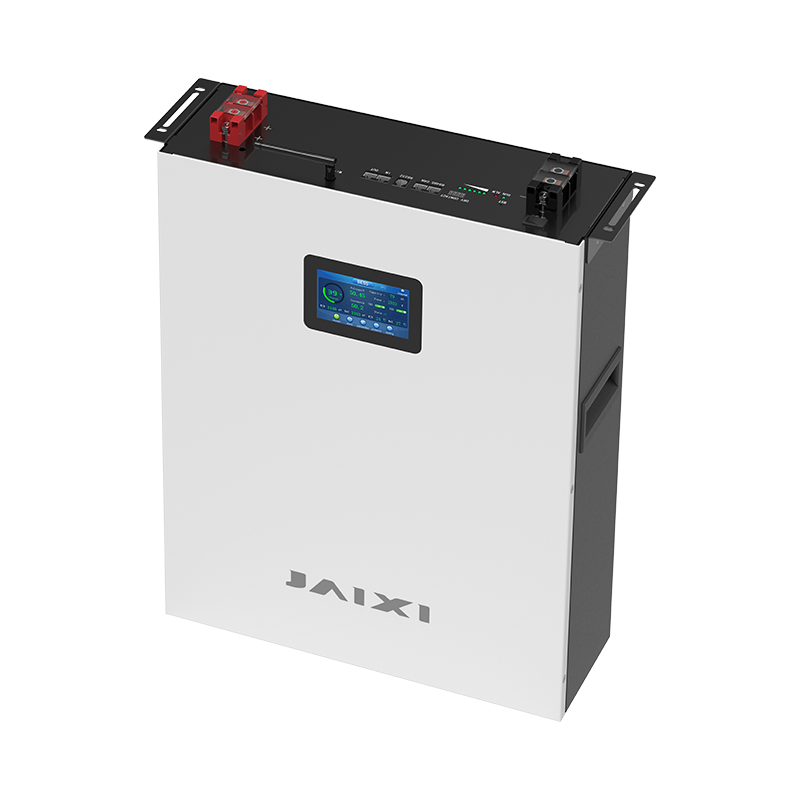

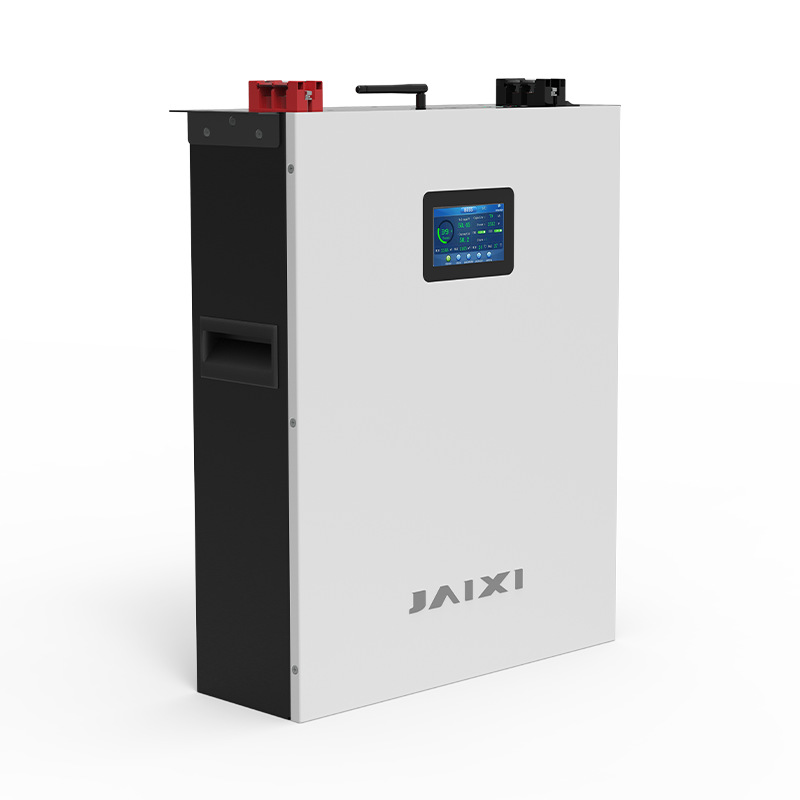

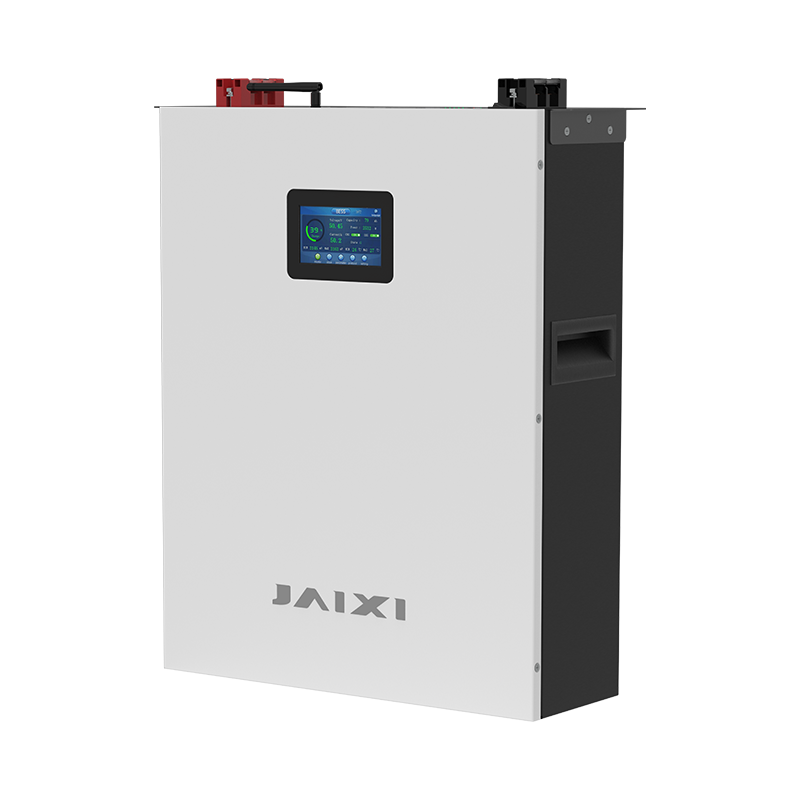

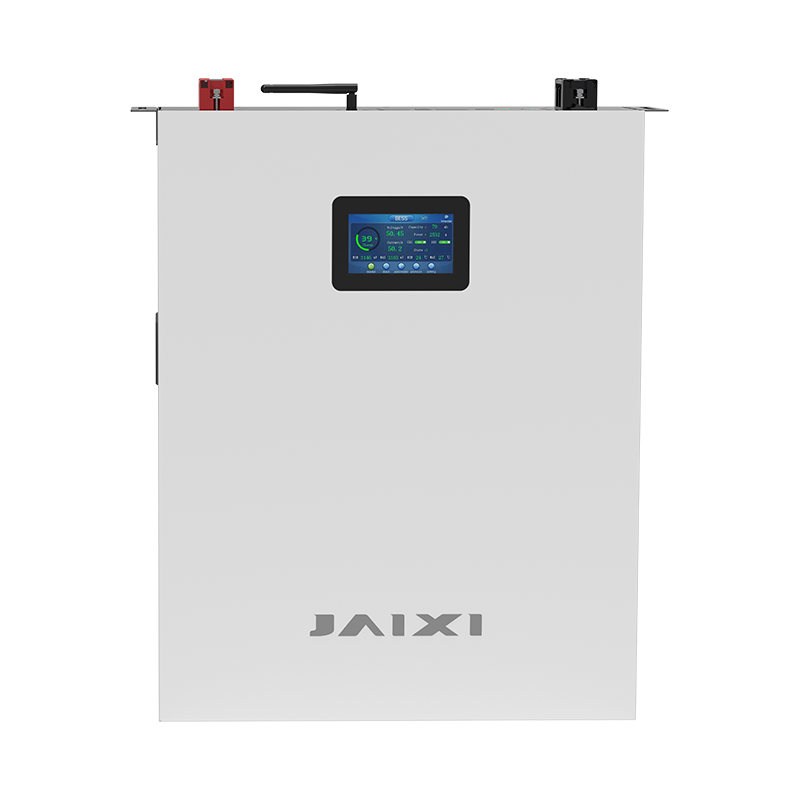

Neptune LA-B5.0-A-01 |
| Main Parameter |
| Battery Type |
LiFePO₄ |
| Capacity(Ah) |
100 |
| Scalability |
Recommend 15 pcs pack(76.8kWh) |
| Nominal Voltage(V) |
51.2 |
| Operating Voltage(V) |
43.2~57.6 |
| Rated Energy(KWh) |
5.12 |
| Usable Energy(KWh) |
4.6 |
| Charge/Discharge Current(A) |
Recommend 50 |
| Max 100 |
| Other Parameter |
| Recommend Deth Of Discharge |
90% |
| Dimension(W×H×D mm) |
440×560×153(Without handle or Connector) |
| Weight Approximate(Kg) |
45 |
| Touch Color Screen |
Display Battery Information |
| IP Rating Of Enclosure |
IP20 |
| Operating Temperature(℃) |
Charge:0℃~55℃ |
| Discharge:-20℃~55℃ |
| Storage Temperature(℃) |
-10℃~35℃ |
| Humidity |
5%~95% |
| Altitude |
≤2000m |
| Cycle Life* |
≥6000 Cycles |
| Installation Location |
Wall-mounted |
| Communication Port |
CAN2.0,RS485,WIFI |
| Warranty Period |
5 years |
| Certification |
UN38.3 |
English
中文简体
The service life can reach up to 5 years
Discharge temperature: -20℃~55℃
6,000 revolutions per cycle service life
Built-in 120A/125VDC fuse protection
Support up to 15 unit in parallel
Wi-Fi Standard +Bluetooth
Supports floor mount and wall mount to save mounting space
Supports multiple communication protocols
