Exceptional Performance
• Automatically manage charge /discharge and balance current/ voltage, less self-discharge
• Up to 6 months without charging on shelf
• No memory effect, performs well with shallow charges and discharges -
Safer
• LFP Battery: safety, long lifespan and high-energy density
• Built-in intelligent BMS, providing complete protection functions against over-discharge, over-charge,over-current,over-high or low temperature -
Flexible
• Multiple battery modules can be in parallel
• Support 12 packs in series, the maximum energy is 61.44kwh -
Smarter
• Support remotely monitoring and upgrade
• Support USB and Wi-Fi(optional )upgrade -
Reliability
• IP20-rated for indoor environments
• Wide temperature range:-20°C~55°C

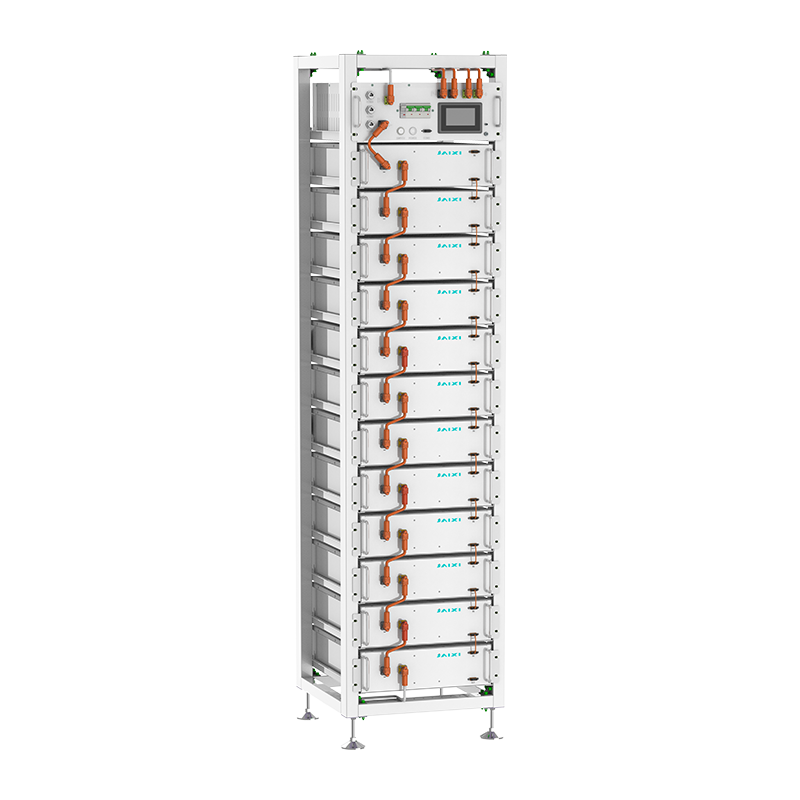

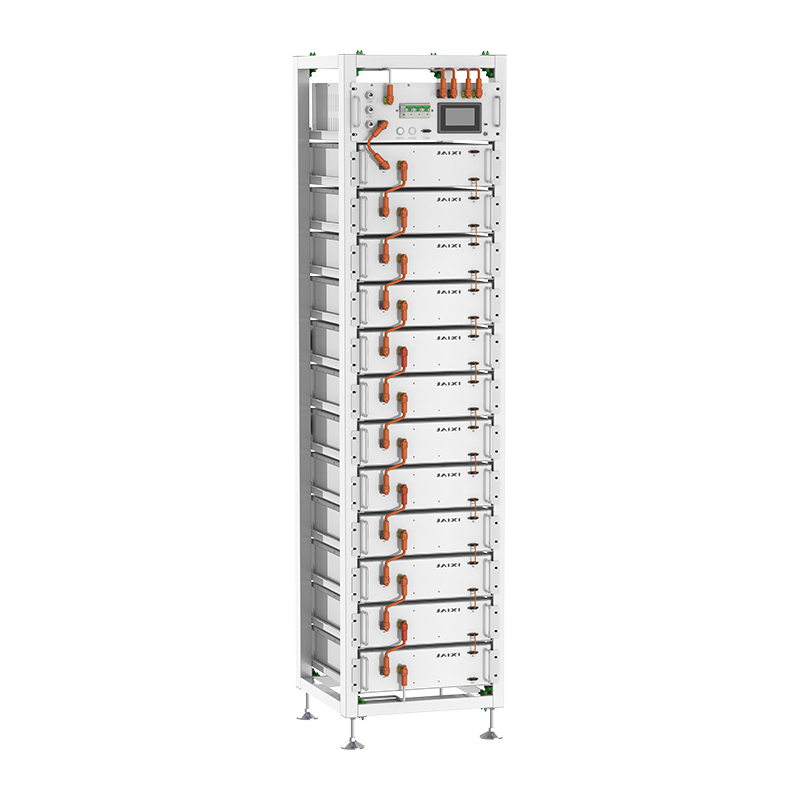

| Technical Data | Jupiter HA-R35~60 | |||||
| Main Parameter | ||||||
| Battery Type | LiFePQ₄ | |||||
| Battery Module Energy(kWh) | 5.12 | |||||
| Battery Module Nominal Voltage(V) | 51.2 | |||||
| Battery Module Capacity(Ah) | 100 | |||||
| Battery System Model | Jupiter HA-R35 | Jupiter HA-R40 | Jupiter HA-R45 | Jupiter HA-R50 | Jupiter HA-R55 | Jupiter HA-R60 |
| Battery Module Qty In Series(Optional) | 7 | 8 | 9 | 10 | 11 | 12 |
| System Nominal Voltage(V) | 358.4 | 409.6 | 460.8 | 512 | 563.2 | 614.4 |
| System Operating Voltage(V) | 313.6~403.2 | 358.4~460.8 | 403.2~518.4 | 448~576 | 492.8~633.6 | 537.6~691.2 |
| System Energy(kWh) | 35.84 | 40.96 | 46.08 | 51.2 | 56.32 | 61.44 |
| System Usable Energy(kWh) | 32.25 | 36.86 | 41.47 | 46.08 | 50.68 | 55.29 |
| Rated DC Power(kW) | 35.84 | 40.96 | 46.08 | 51.2 | 56.32 | 61.44 |
| Charge /Discharge Current (A) | Recommend 50 | |||||
| Max 100 | ||||||
| Other Parameter | ||||||
| Operating Temperature(℃) | Charge:0~55/Discharge:-20~55 | |||||
| Storage Temperature(℃) | -10~35 | |||||
| Status Indicator | Green: Battery is properly power on, Red: Battery System Alarm | |||||
| Communication Port | CAN2.0/RS485 | |||||
| Humidity | 5%~85%RH | |||||
| Altitude | ≤3000m | |||||
| IP Rating of Enclosure | IP20 | |||||
| System Dimension (W×H×D,mm) | 550×1740×602 | 550×2170×602 | ||||
| System Weight Approximate(kg) | 388 | 431 | 474 | 518 | 564 | 610 |
| Installation Location | Rack-Mounted | |||||
| Recommend Depth of Discharge | 90% | |||||
| Cycle Life* | ≥6000 Cycles | |||||
| Warranty Period | 5/10 years | |||||
| Certification | UN38.3, SDS, CE, IEC62619 | |||||
