IP65
High level protection -
6000 cycles @70% for e ectively lower total of ownership cost -
Easy and Quick Installation -
Supports multiple communication protocols -
Color touch display screen, Wi-Fi, and Bluetooth. -
App Remote Monitoring

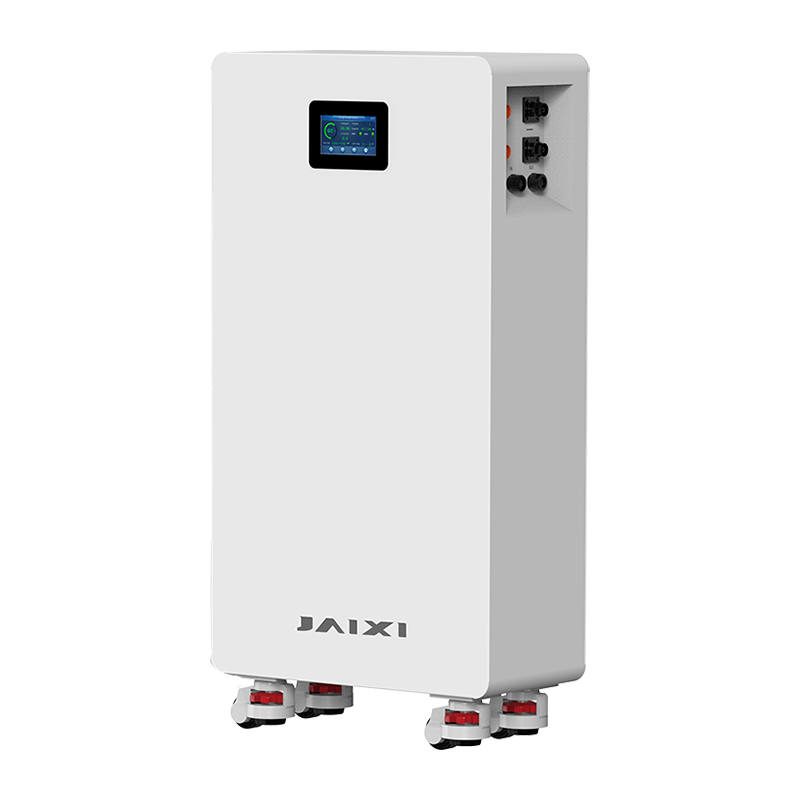

| Technical Data | Neptune LA-D16.0 |
| Capacity | 16.07kWh |
| Main Parameter | |
| Battery Type | LiFePO₄ |
| Nominal Voltage(V) | 51.2 |
| Operating Voltage(V) | 43.2~57.6 |
| Capacity(Ah) | 314 |
| Rated Energy(kWh) | 16.07 |
| Usable Energy(kWh) | 14.46 |
| Maximum Charge/Discharge Current(A) |
150/200 |
| Recommend Deth of Discharge | 90% |
| Other Parameter | |
| Display | Color touch display screen |
| Ingress Protection | IP65 |
| Operating Temperature(°C) | Charge:0°C~55℃ |
| Discharge:-20℃~55℃ | |
| Storage Temperature(℃) | -10℃~35℃ |
| Humidity | 5%~95% |
| Altitude | ≤2000m |
| Communication Port | CAN2.0,RS485 |
| Cycle life | ≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL) |
| Optional | Heating function, fire suppression device,Wi-Fi monitoring. |
| Installation Location | Floor-Mounted |
| Dimension(W×H×D,mm) | 480*875*235 |
| Weight Approximate(kg) | 115 |
| Warranty Period | 5 years |
| Certification | UN38.3 |
