IP65
High level protection -
6000 cycles @70% for e ectively lower total of ownership cost -
Easy and Quick Installation -
Supports multiple communication protocols -
Color touch display screen, Wi-Fi, and Bluetooth. -
App Remote Monitoring

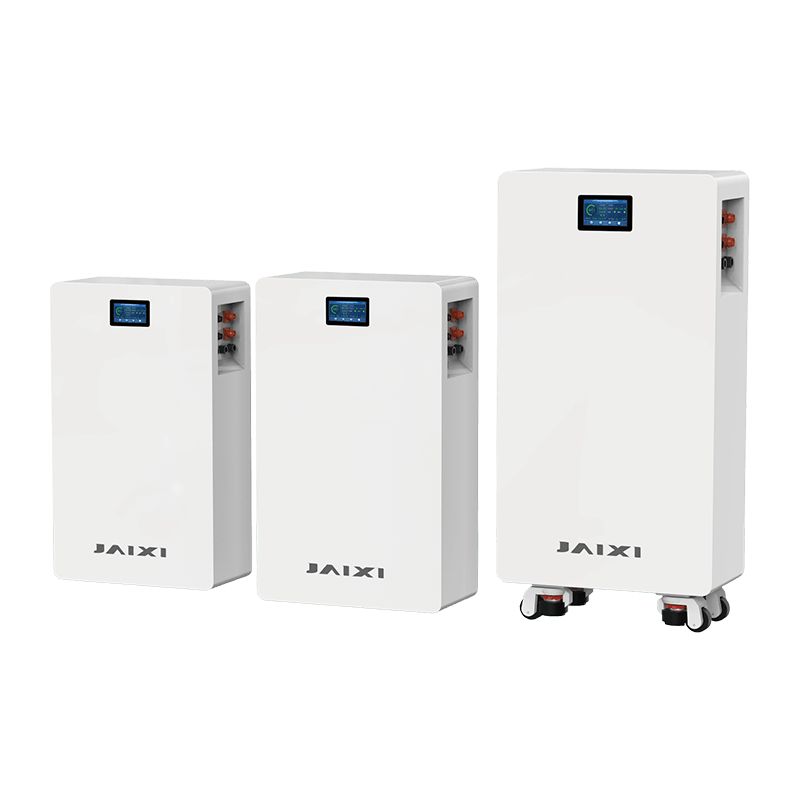

| Technical Data | Neptune LA-D5.1 | Neptune LA-D10.0 | Neptune LA-D16.0 |
| Capacity | 5.12kWh | 10.49kWh | 16.07kWh |
| Main Parameter | |||
| Battery Type | LiFePO₄ | ||
| Nominal Voltage(V) | 51.2 | ||
| Operating Voltage(V) | 43.2~57.6 | ||
| Capacity(Ah) | 100 | 205 | 314 |
| Rated Energy(kWh) | 5.12 | 10.49 | 16.07 |
| Usable Energy(kWh) | 4.6 | 9.44 | 14.46 |
| Maximum Charge/Discharge Current(A) |
70/100 | 100/150 | 150/200 |
| Recommend Deth of Discharge | 90% | ||
| Other Parameter | |||
| Display | Color touch display screen | ||
| Ingress Protection | IP65 | ||
| Operating Temperature(°C) | Charge:0°C~55℃ | ||
| Discharge:-20℃~55℃ | |||
| Storage Temperature(℃) | -10℃~35℃ | ||
| Humidity | 5%~95% | ||
| Altitude | ≤2000m | ||
| Communication Port | CAN2.0,RS485 | ||
| Cycle life | ≥6000(25℃±2℃,0.5C/0.5C,90%DOD,70%EOL) | ||
| Optional | Heating function, fire suppression device,Wi-Fi monitoring. | ||
| Installation Location | Wall-Mounted | Wall-Mounted | Floor-Mounted |
| Dimension(W×H×D,mm) | 430*600*145 | 480*720*235 | 480*875*235 |
| Weight Approximate(kg) | 47 | 90 | 115 |
| Warranty Period | 5 years | ||
| Certification | UN38.3 | ||
